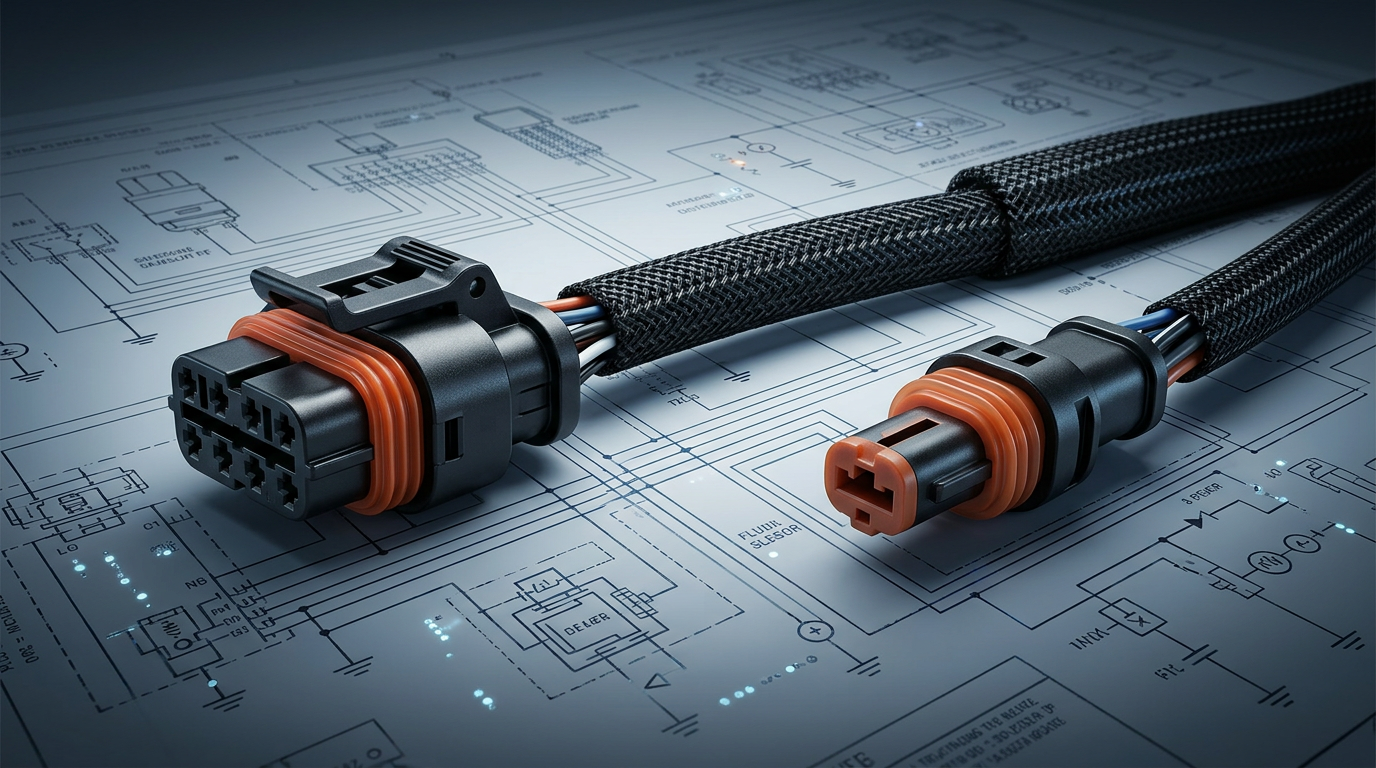

Custom Automotive Fluid Level Sensor Adapter Harness: Engineering Reliable Connections
In modern automotive manufacturing, retrofitting, and aftermarket repairs, achieving precise fluid level monitoring is critical for vehicle safety and performance. However, engineers and mechanics frequently encounter a frustrating set of challenges: mismatched connector interfaces between new sensors and legacy vehicle wiring, poor contact leading to intermittent dashboard warnings, and signal degradation caused by harsh under-hood environments.
A Custom Automotive Fluid Level Sensor Adapter Harness serves as the definitive solution to these pain points. By bridging the gap between incompatible components, these specialized adapter harnesses ensure seamless integration, flawless signal transmission, and long-term durability in demanding automotive ecosystems.
Working Principle & Functions
The primary function of a fluid level sensor adapter harness is to provide a secure, plug-and-play electrical bridge between a specific fluid level sensor (such as a float switch or ultrasonic sensor) and the vehicle’s Engine Control Unit (ECU) or dashboard display.
When an OEM or aftermarket sensor utilizes a different pinout, housing, or terminal size than the existing chassis wiring, the adapter harness safely routes the electrical pathways to match the required configuration. Furthermore, these harnesses are engineered to maintain absolute signal integrity, ensuring that critical data regarding fluid volume is transmitted without voltage drops or electromagnetic interference (EMI).
Classifications & Features
Fluid level adapter harnesses are engineered to meet specific environmental and chemical exposure requirements. We classify our custom solutions based on their operational resilience:
- High-Temperature Resistant Harnesses: Designed with PTFE or XLPE wire insulation to withstand extreme heat near engine blocks and exhaust systems.
- Chemical & Oil Resistant Harnesses: Utilizing specialized corrugated tubing and sealed connectors that resist degradation from prolonged exposure to synthetic oils and corrosive automotive fluids.
- Heavy-Duty Waterproof Harnesses: Featuring IP67/IP69K rated connectors with double-sealed housings, ideal for undercarriage or exterior chassis installations where water ingress is a constant threat.
Common Application Scenarios
Our custom harnesses are relied upon by top-tier OEMs, heavy-duty truck manufacturers, and specialized vehicle modifiers across a variety of critical fluid management systems:
- Diesel Exhaust Fluid (DEF) Systems: Essential for commercial trucks and modern diesel vehicles. The adapter harness ensures the DEF level sensor communicates accurately with the emissions system to prevent engine derating, utilizing materials highly resistant to urea crystallization.
- Engine Oil Level Monitoring: Installed directly in the high-temperature environment of the engine oil pan. These harnesses prevent heat-induced wire brittleness and ensure accurate low-oil warnings.
- Brake Fluid Reservoirs: Providing fail-safe connections for brake fluid level sensors, alerting drivers immediately to dangerous fluid loss to guarantee operational safety.
- Coolant & Washer Fluid Tanks: Offering cost-effective, highly waterproof connections for expansion tanks and auxiliary fluid reservoirs, preventing false dashboard alerts caused by connector corrosion.
Detailed Specifications
To guarantee maximum reliability, we utilize only premium-grade raw materials and globally recognized automotive connectors (such as TE Connectivity, Delphi, or equivalent custom tooling). Below are the standard specifications for our custom adapter harnesses.
Wire Specifications
| Specification Item | Standard Parameter Range | Customization Options |
|---|---|---|
| Wire Gauge (AWG) | 16 AWG - 22 AWG | Custom sizes available for specific voltage drops |
| Conductor Material | Oxygen-Free Bare Copper (OFC) | Tinned Copper for enhanced corrosion resistance |
| Insulation Material | TXL / GXL / FLRY-B | Teflon (PTFE) / Silicone for extreme temperatures |
| Temperature Rating | -40°C to +125°C | Up to +200°C for high-heat engine compartment zones |
| Jacket / Sheathing | PVC Tube / Corrugated Conduit | Braided fiberglass, Nylon sleeving, Heat-shrink tubing |
Connector Specifications
| Specification Item | Standard Parameter Range | Customization Options |
|---|---|---|
| Housing Material | PA66 + GF (Glass Fiber) | PBT, High-temp Nylon for specialized environments |
| Waterproof Rating | IP67 | IP69K (High-pressure, high-temp washdown resistant) |
| Terminal Material | Brass / Phosphor Bronze | Gold-plated or Tin-plated for low resistance |
| Locking Mechanism | CPA (Connector Position Assurance) | Secondary locks, Custom latching designs |
| Sealing Type | Silicone Wire Seals & Perimeter Seals | Viton seals for harsh chemical/fuel environments |
Our Company Profile & Custom Solutions
When it comes to automotive wiring, there is no room for compromise. As a professional, industry-leading wire harness manufacturing factory, we are deeply committed to engineering excellence and strict quality control.
- Strict Industry Certifications: Our production facility operates under the rigorous standards of ISO9001 and IATF16949 automotive quality management systems. Every harness undergoes 100% electrical testing, including continuity, pull-force, and dielectric withstand tests.
- Flexible Low-Volume & Custom Production: We understand that specialty modifiers, aftermarket brands, and R&D departments often require bespoke solutions without the burden of massive Minimum Order Quantities (MOQs). We proudly support small batch production and flexible order scaling.
- One-Stop Engineering Support: We do not just build to print; we solve problems. Our professional in-house design team provides end-to-end support—from initial CAD drafting and 3D modeling of custom connectors to prototyping and final mass production.
Partner With Us Today
Do not let a mismatched interface or a corroded connector compromise your vehicle's reliability. Whether you are an OEM seeking a reliable supply chain partner, or an aftermarket brand looking to develop a unique sensor pigtail, our engineering team is ready to assist.
Contact us today with your schematic, technical drawing, or simply a description of your pain point. Let our IATF16949-certified factory deliver the perfect custom automotive fluid level sensor adapter harness tailored exactly to your specifications. Request a free quote and prototype consultation now!
